This project was a school project in Georgia Tech's Industrial design project. The guidelines were that there was a limited amount of material (4ft.x 8ft. sheet of .75in plywood). There was no hardware permitted for assembly, all CNC joints had to be friction fit together using the tolerance of the material and the characteristics of the CNC router.
Final Chair Model and Acrylic Logo
CAD Exploded view and Flatlay

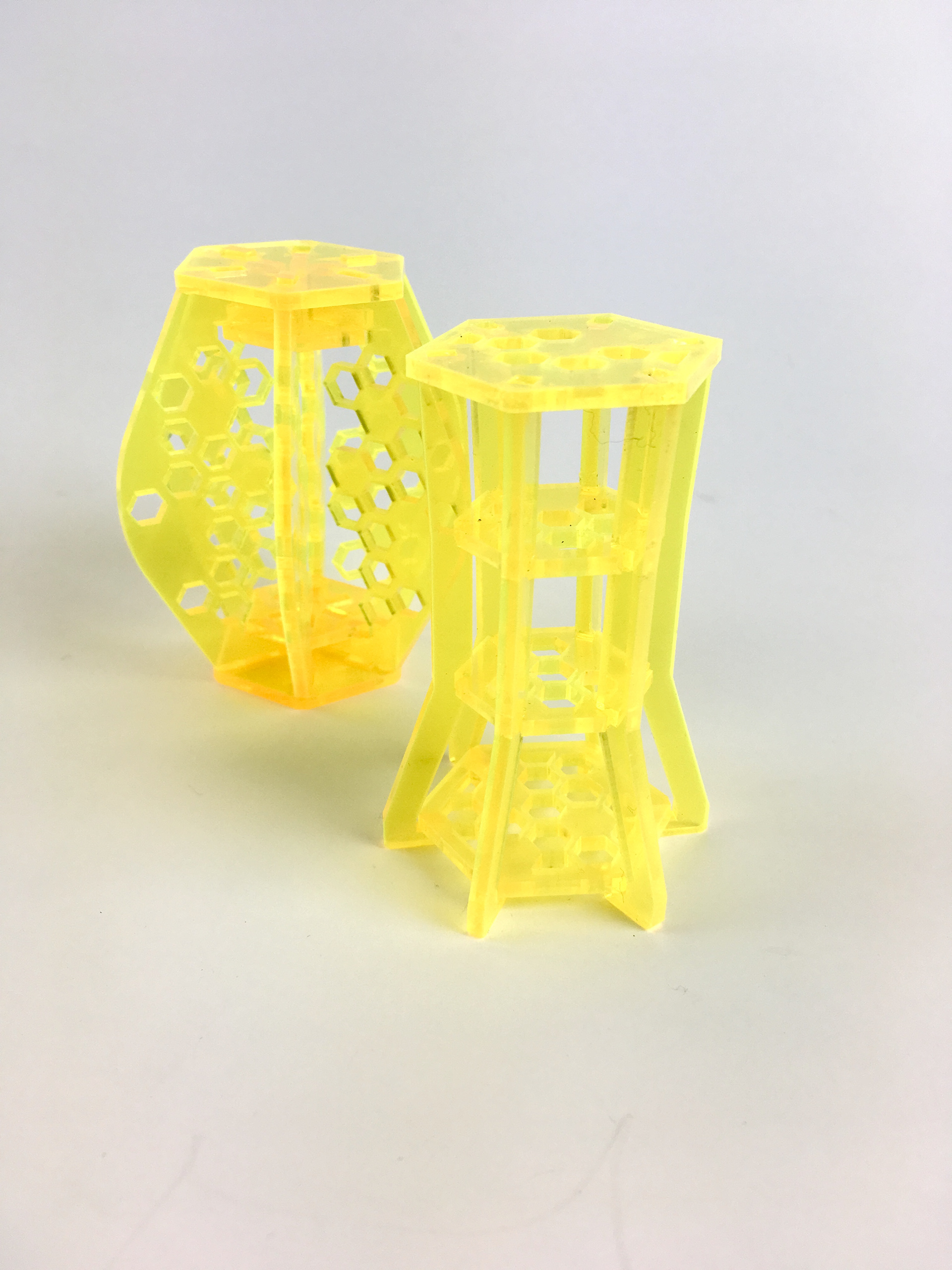

Acrylic 1/8 Scaled Models
Dimensional CAD Drawing with Branding

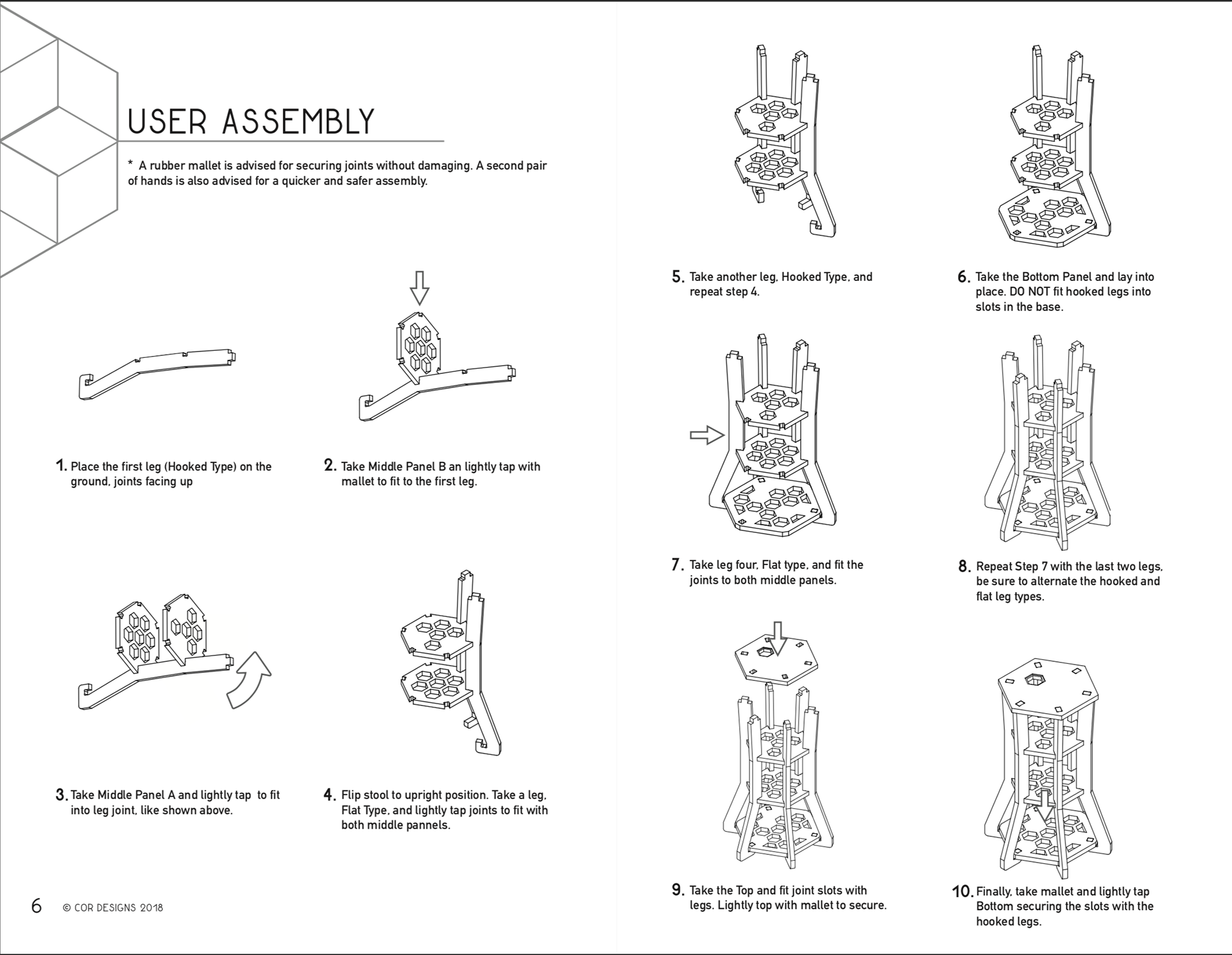

Instruction Manual for chair; front page and 1-10 steps.
Final Chair Presentation; Stool, Poster, Instruction Manual
